Water-Cooled Condensing Unit 5 HP, Medium Temp, R22, 220V/3PH

Made In USA. Assembled with QT AGA5561EXT Compressor.

One Year Manufacturer's Warranty. On Compressor.

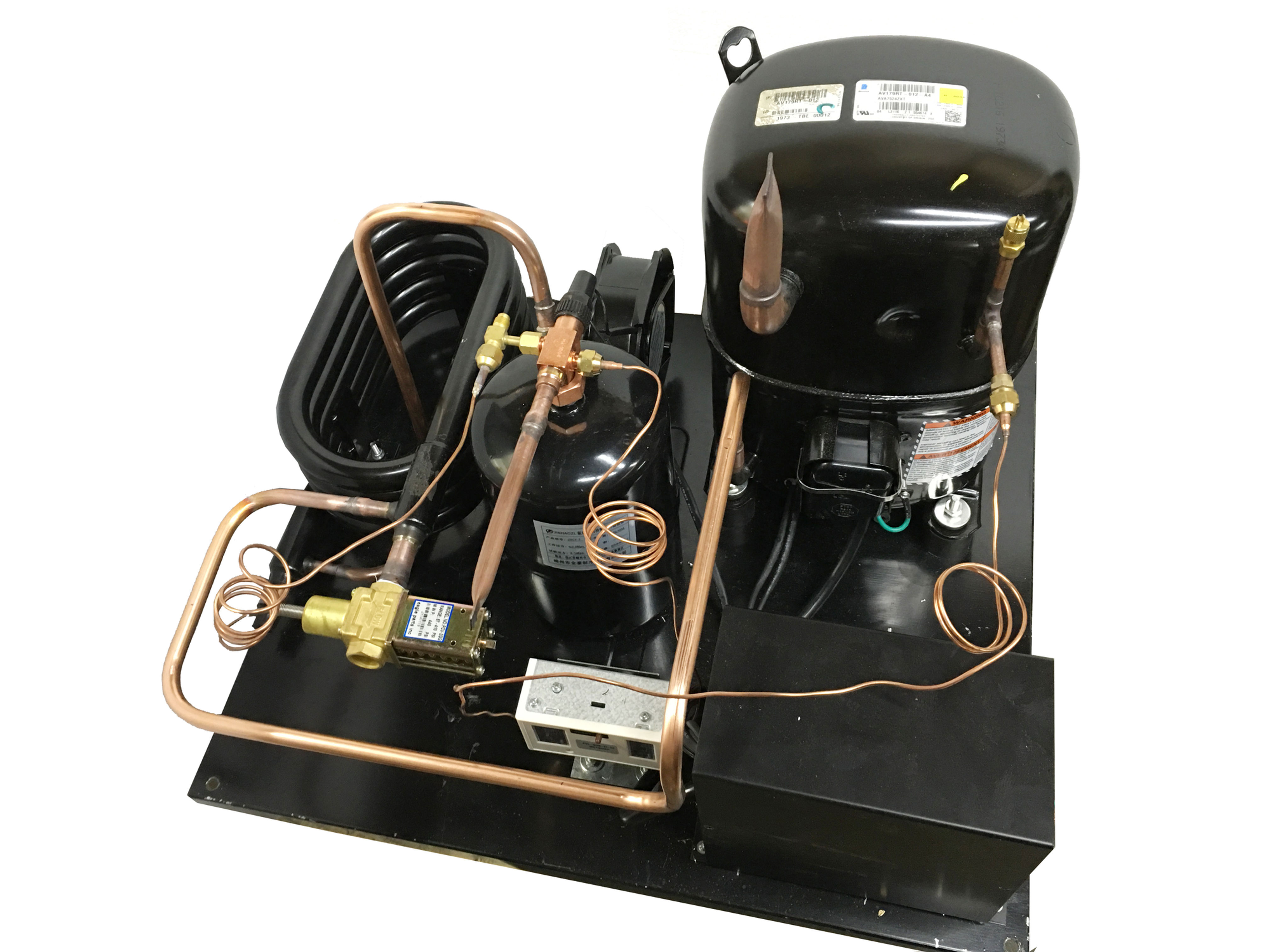

Water-Cooled QT AGA5561EXT Unit 5 HP, High Temp, R22, 220V/3PH

$2,912.00

Quantity

Product Description

Type:
Reciprocating

Application:
HBP/AC - Air Conditioning

Refrigerant:
R-22

Voltage/Frequency:
200-230V 3~ 60Hz 200-220V 3~ 50Hz

Refrigeration Capacity
Input Power

Btu/h kcal/h W W

61000 15372 17873 6300

Efficiency

Btu/Wh kcal/Wh W/W

9.68 2.44 2.84

EVAP TEMP

COND TEMP

AMBIENT TEMP

7.2°C (45°F) 54°C (130°F) 35°C (95°F)

RETURN GAS

LIQUID TEMP

35°C (95°F) 46°C (115°F)

General

Evaporating Temp. Range:	-23.3°C to 12.8°C (-10°F to 55°F)
Motor Torque:	Low Start Torque (LST)
Compressor Cooling:	Water Coil

Mechanical

Displacement (cc):	112.438
Oil Type:	Polyolester
Viscosity (cSt):	32
Oil Charge (cc):	1955

Electrical

Voltage Range (50 Hz):	180-242
Voltage Range (60 Hz):	180-254
Locked Rotor Amps (LRA):	126
Rated Load Amps (RLA 50 Hz):	0
Rated Load Amps (RLA 60 Hz):	18
Max. Continuous Current (MCC in Amps):	29.2
Motor Resistance (Ohm) - Main:	.658
Motor Resistance (Ohm) - Start:	N/A
Motor Type:	3PH
Overload Type:	N/A
Relay Type:	N/A
