Outdoor Low Temp Condensing Unit 7 HP, R404A, 3 Phase
Assembled in USA. Unit equipped with Invotech QTYF45E7G-Q100 Scroll Compressor.
NOTE: Due to the dimensions and weight of the unit, this listing is for local pickup only.
Cross-reference/spec table (includes YF45E7G-Q100): Invotech catalog PDF; page shows YF45E7G-Q100 with 108.00 cm³/rev, 7 HP, and capacity ≈ 20.83 kW at ARI540 LT (-31.7 °C evap / 40.6 °C cond, SH 50 K, no subcool).
Series datasheet/capacity catalog for YM/YF (mid & low temp): broader YM/YF PDF with operating envelopes and rating context.
YF application guidelines (nomenclature + envelope): helpful for decoding the model code and allowed ranges.
Vital basics (from the Invotech table)
Model: YF45E7G-Q100
Series / Type: YF — low-temperature scroll, R404A family (per YF docs). Invotech+1
Voltage / Phase / Freq: 208–230 V, 3-phase, 60 Hz (context of the table).
Displacement: 108.00 cm³/rev.
Rated power: 7 HP.
Cooling capacity @ ARI540 LT: ≈ 20.83 kW (≈ 71,100 BTU/h; converted)

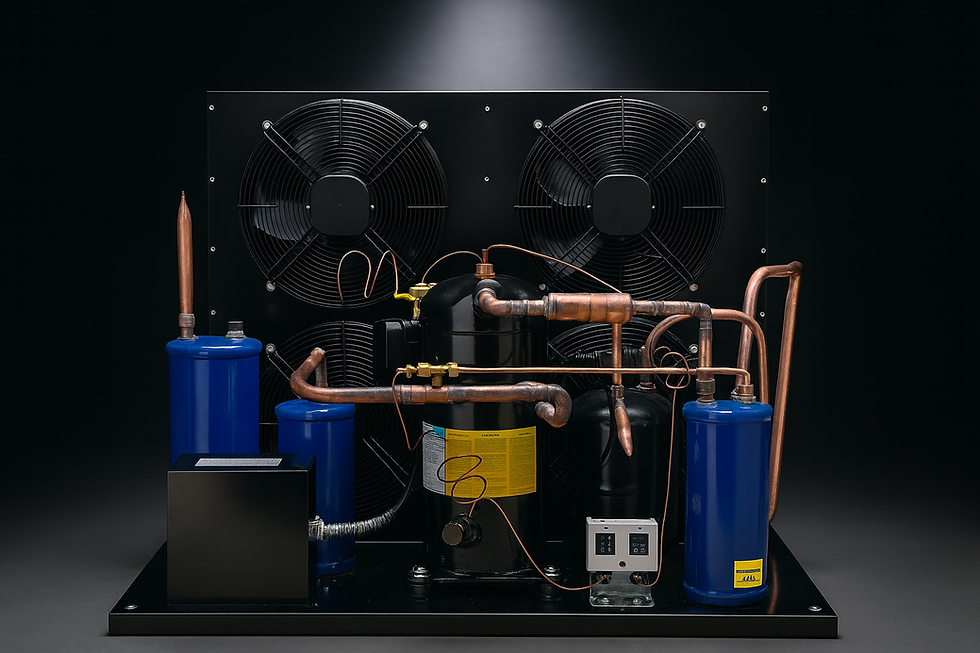

Outdoor QTYF45E7G-Q100 Scroll Low Temp Condensing Unit 7 HP 3PH/220V, R404A
Warranty Information: One year warranty on compressor from date of purchase. Buyer is responsible for shipping cost. Defective unit must ship prepaid. Return Merchandise Authorization (RMA) must be pre-approved by contacting us. No exception. NOTE: We only ship this unit to 48 Continental States.
-
Model Series Refrigerant Voltage/Phase/Frequency YF45E7G-Q100 YF (Low-temp scroll) R404A (per YF series docs) 208-230V / 3φ / 60Hz Displacement (cm³/rev) Rated Power (HP) Cooling Capacity (kW) @ ARI540 LT Cooling Capacity (BTU/h) @ ARI540 LT 108 7 20.83 71075 Notes Capacity at ARI540 LT: E.T. -31.7°C (-25°F), C.T. 40.6°C (105°F), SH 50K, no sub-cooling.
-
