Outdoor QT AJA4512YXD Unit 1 HP, R134a, 220V/1PH

Made In USA.  Assembled with QTAJA4512YXD Compressor.
One Year Manufacturer's Warranty On Compressor.

Dimensions: 28-1/2''L X 16-1/4''W X 16-3/4''H

Outdoor QT AJA4512YXD Unit 1 HP, R134a, 220V/1PH (USA)

Name: Outdoor QT AJA4512YXD Unit 1 HP, R134a, 220V/1PH (USA)
Price: 1764 USD
Availability: InStock

From $1,764.00

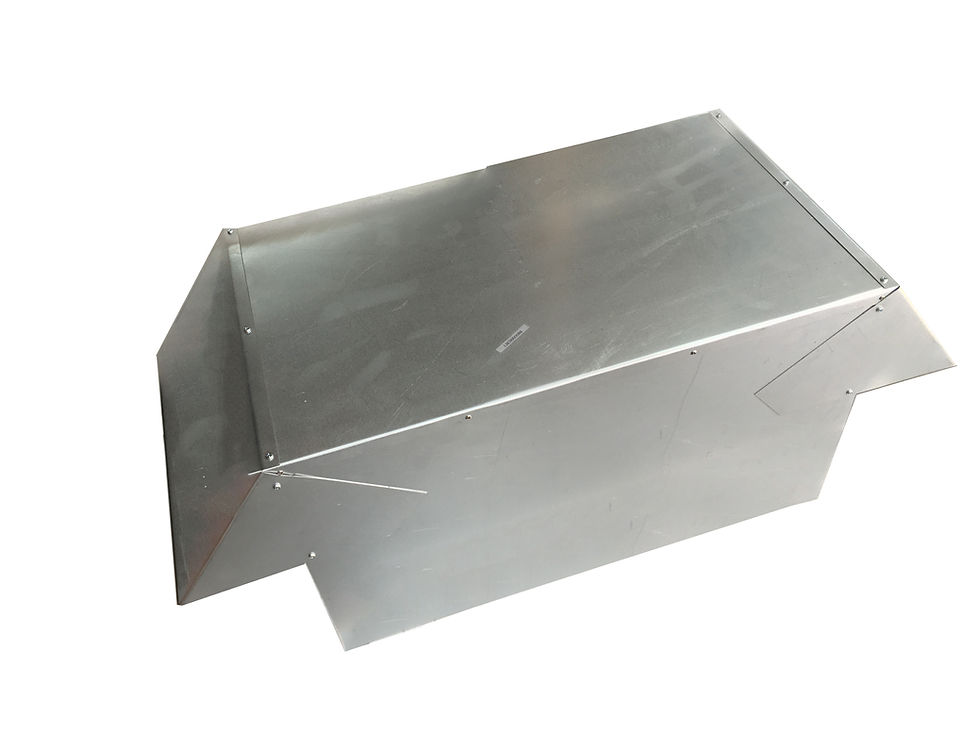

Add a Cover (Add'l $234.00)

Quantity

Product Description

Type:
Reciprocating

Application:
HBP - High Back Pressure

Refrigerant:
R-134a/R-513A

Voltage/Frequency:

208-230V ~ 60Hz 200V ~ 50Hz

Refrigeration Capacity Input Power

Btu/h kcal/h W W

12636 3186 3703 1606

Efficiency

Btu/Wh kcal/Wh W/W

7.87 1.98 2.31

EVAP TEMP

COND TEMP

AMBIENT TEMP

7.2°C (45°F) 54°C (130°F) 35°C (95°F)

RETURN GAS

LIQUID TEMP

18.3°C (65°F) 46°C (115°F)

General

Evaporating Temp. Range:	-6.7°C to 12.8°C (20°F to 55°F)
Motor Torque:	High Start Torque (HST)
Compressor Cooling:	Fan

Mechanical

Displacement (cc):	34.366
Oil Type:	Polyolester
Viscosity (cSt):	32
Oil Charge (cc):	782

Electrical

Voltage Range (50 Hz):	180-220
Voltage Range (60 Hz):	187-254
Locked Rotor Amps (LRA):	41
Rated Load Amps (RLA 50 Hz):	0
Rated Load Amps (RLA 60 Hz):	7
Max. Continuous Current (MCC in Amps):	11.5
Motor Resistance (Ohm) - Main:	1.55
Motor Resistance (Ohm) - Start:	7.076
Motor Type:	CSR
Overload Type:	N/A
Relay Type:	N/A

Outdoor QT AJA4512YXD Unit 1 HP, R134a, 220V/1PH (USA)

Performance

Technical Specifications

Warranty

Type:	Reciprocating
Application:	HBP - High Back Pressure
Refrigerant:	R-134a/R-513A
Voltage/Frequency:	208-230V ~ 60Hz 200V ~ 50Hz

Refrigeration Capacity	Input Power
Btu/h	kcal/h	W	W
12636	3186	3703	1606

EVAP TEMP	COND TEMP	AMBIENT TEMP
7.2°C (45°F)	54°C (130°F)	35°C (95°F)

Efficiency
Btu/Wh	kcal/Wh	W/W
7.87	1.98	2.31

RETURN GAS	LIQUID TEMP
18.3°C (65°F)	46°C (115°F)
