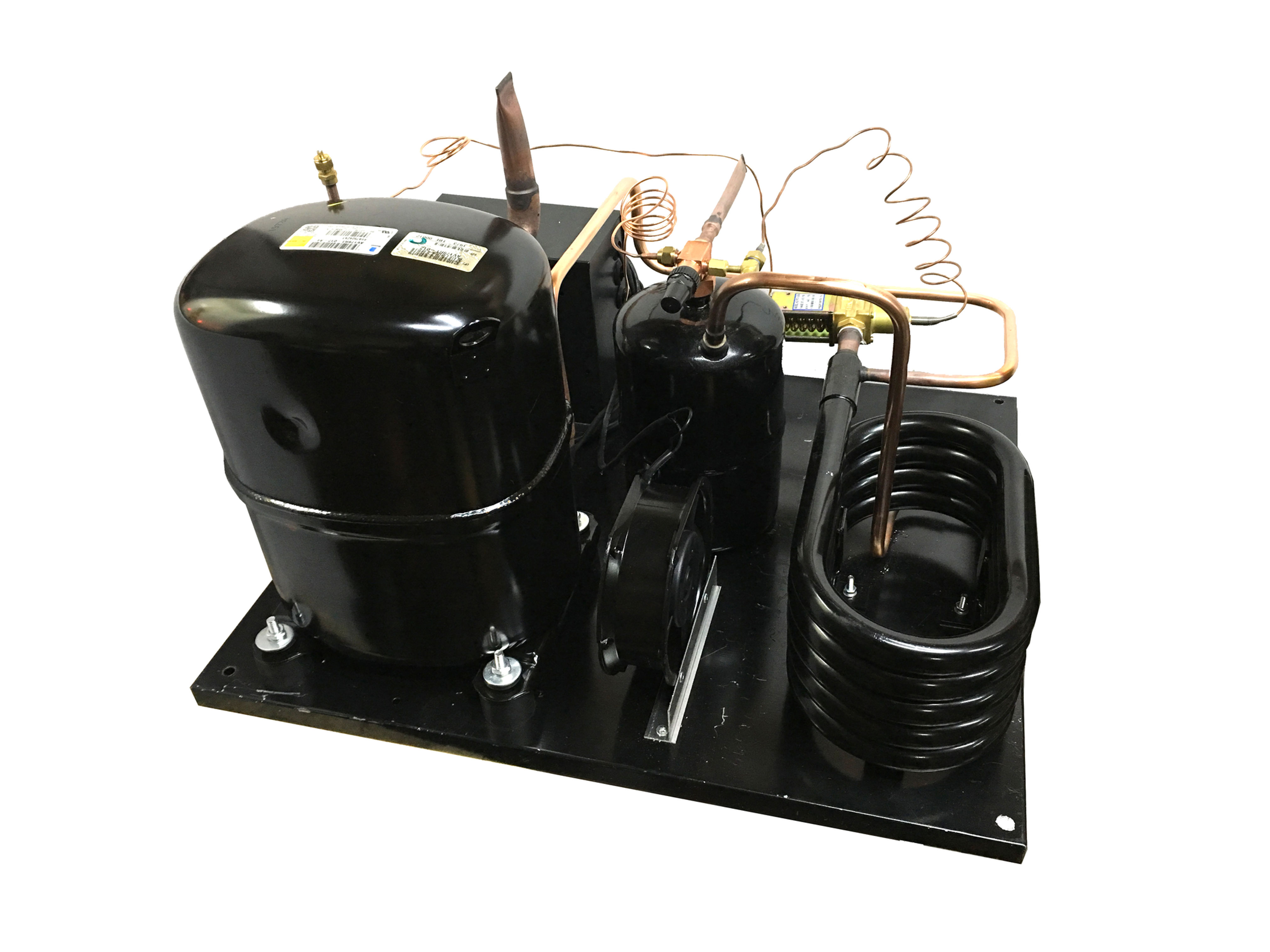

Water-Cooled Condensing Unit 2-1/2 HP, Low Temp, R404A, 220V/1PH
Assembled with QTAWS2512ZXN Compressor.One Year Manufacturer's Warranty On Compressor.
Water Unit QT AWS2512ZXN, 2-1/2 HP, R404A, 220V/1PH
Product Description
Type:
Reciprocating Compressors Application:
LBP - Low Back Pressure Refrigerant:
R-404A/R-407A/R-448A/R-449A/R-452A Voltage/Frequency:
208-230V ~ 60Hz 200-220V ~ 50Hz Refrigeration Capacity
Input Power Btu/h kcal/h W W 10268 2587 3007 2700 Efficiency Btu/Wh kcal/Wh W/W 3.73 0.94 1.09 EVAP TEMP
COND TEMP
AMBIENT TEMP
-23°C (-10°F) 49°C (120°F) 35°C (95°F) RETURN GAS
LIQUID TEMP
4.4°C (40°F) 49°C (120°F) General
Evaporating Temp. Range:
-40°C to -12.2°C (-40°F to 10°F) Motor Torque:
High Start Torque (HST) Compressor Cooling:
Water Mechanical
Displacement (cc):
91.035 Oil Type:
Polyolester Viscosity (cSt):
32 Oil Charge (cc):
1624 Electrical
Voltage Range (50 Hz):
180-242 Voltage Range (60 Hz):
187-254 Locked Rotor Amps (LRA):
120.3 Rated Load Amps (RLA 50 Hz):
0 Rated Load Amps (RLA 60 Hz):
16.9 Max. Continuous Current (MCC in Amps):
32.5 Motor Resistance (Ohm) - Main:
.419 Motor Resistance (Ohm) - Start:
1.67 MotorType:
CSR Overload Type:
N/A Relay Type:
N/A Agency Approval
cURus Recognized One year warranty on compressor from date of purchase. Buyer is responsible for shipping cost. Defective unit must ship prepaid. Return Merchandise Authorization (RMA) must be pre-approved by contacting us. No exception.
NOTE: We only ship this unit to 48 Continental States.
