Taking correct measurements is important when ordering made-to-measure door seals. There are three methods to determine the seal measurements.

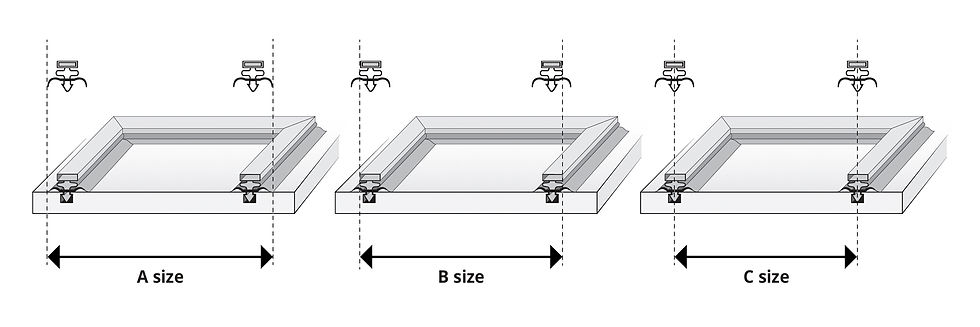

Three methods to determine measurements
Outside-to-Outside (A size)
Magnet-to-Magnet (B size)
Dart-to-Dart (Centre-to Centre) (C size)
Outside-to-outside (A size) measurements can be applied for all door seals. We advise to take outside-to-outside measurements while the seal it is still fitted in the door or drawer.
For dart type profiles it is possible to measure Dart-to-Dart. In practice this means you measure the inside edge of the slot on one side to the outside edge of the slot on the other side. This equals the Centre-to-Centre measurement or C size.
Magnet-to-Magnet is measured from outside of the seal magnet to outside of the seal magnet and is referred to as B size.
